Thermostatventil „AV 9“ DN 15, PN 10, Eck
24,90 €
Versand: 1-4 Werktage
![1183804_frei](https://raleo.de:443/files/img/11ebf510a975d1f094f5b42e99482176/size_m/1183804_frei.jpg)
![https://raleo.de:443/files/static_img/raleo/brands/ov_logo.png](https://raleo.de:443/files/static_img/raleo/brands/ov_logo.png)
Thermostatventil „AV 9“ DN 15, PN 10, Durchgang
27,90 €
Versand: 1-4 Werktage
![https://raleo.de:443/files/static_img/raleo/brands/flamco_logo.png](https://raleo.de:443/files/static_img/raleo/brands/flamco_logo.png)

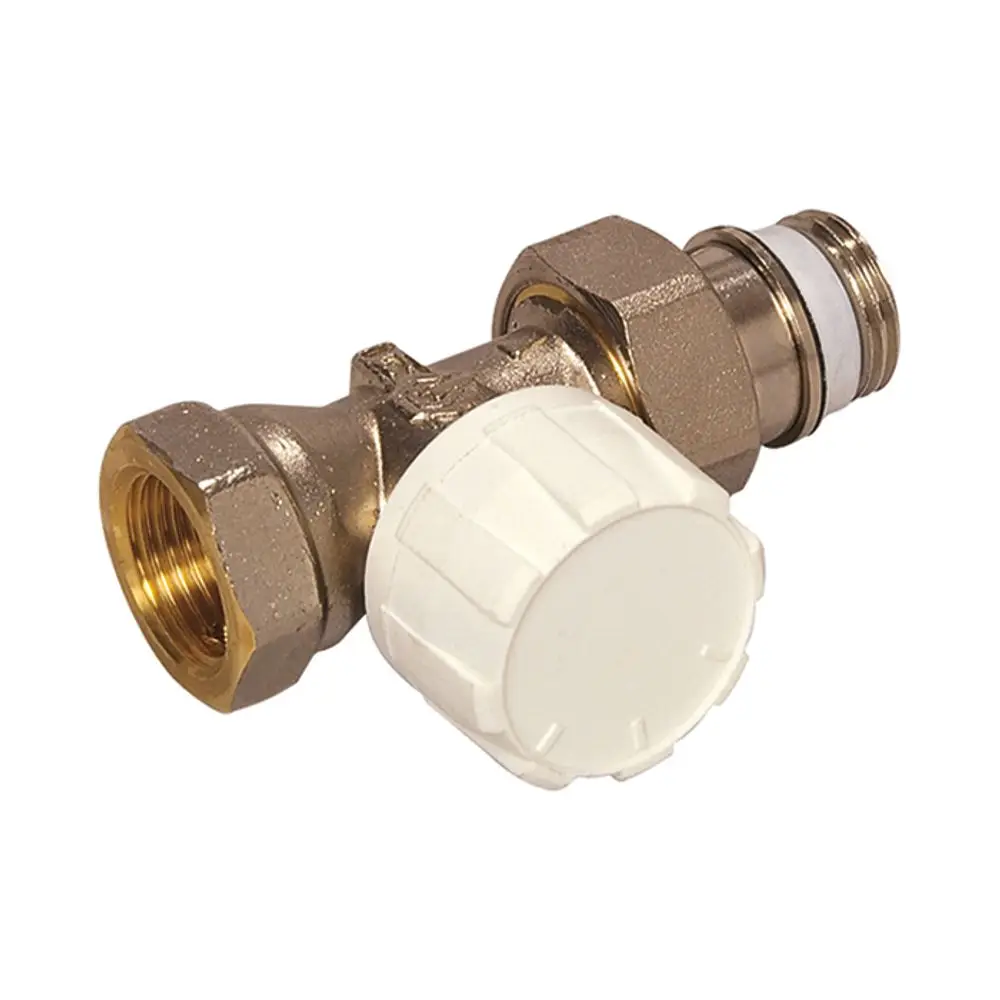

Flamco Thermostatventil Durchg. kurz DN15 mit Voreinst., Rp1/2 x G1/2a, M30x1,5, F34011
Hersteller: Flamco
Artikel-Nr.: F34011
EAN: 4013852270336
Verfügbar
Versand: 10-30 Werktage
zzgl. Versandkosten 5,90 €
Details anzeigen
30 Tage Rückgaberecht
Details anzeigen31,90 €
inkl. 19% MwSt.
Frage zu diesem Artikel stellen
Model | Thermostat-Ventilunterteil - Kurze Bauform, Durchgang |
Nenn- weite | DN 15 |
Kvs [m³/h] | - |

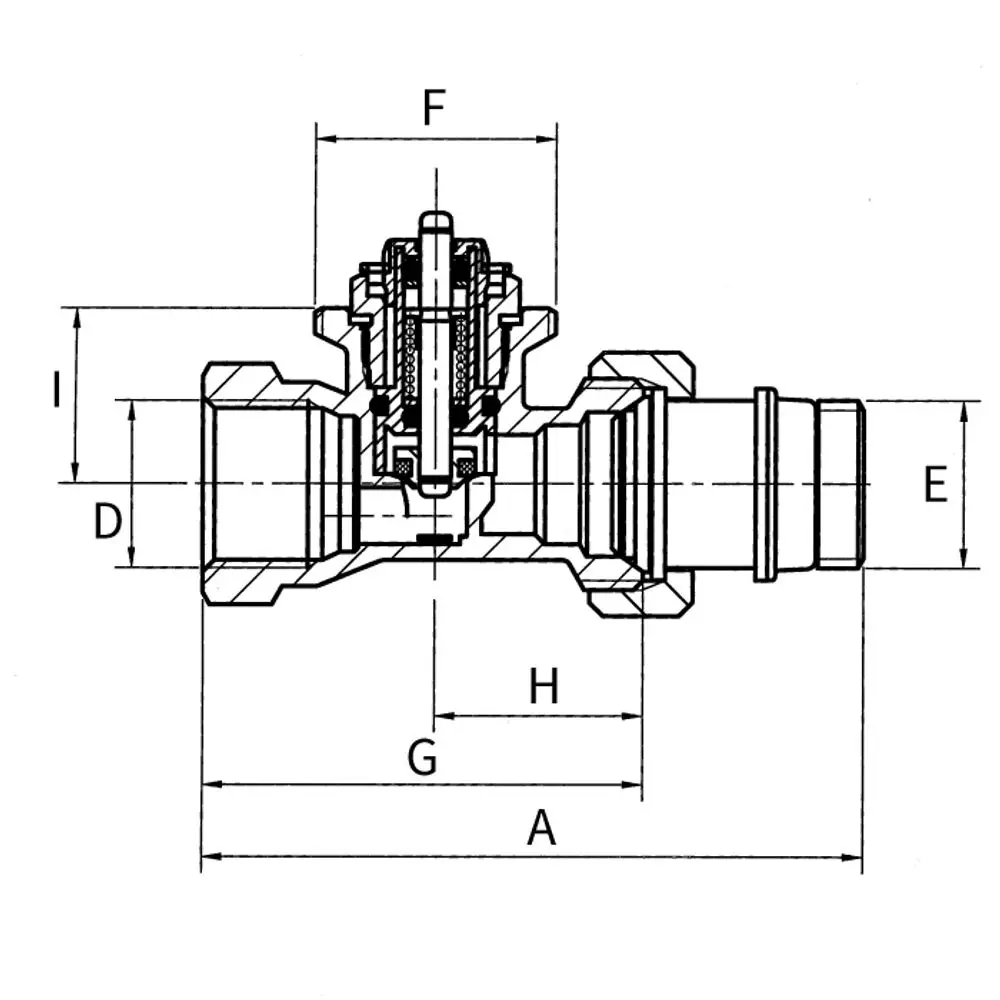

Anschluss D | Rp 1 ⁄ 2 " |
Anschluss E | G 1 ⁄ 2 " M |
Anschluss F | M 30 x 1,5 |
Abmessungen [mm] A | 83 |
Abmessungen [mm] G | 55,0 |
Abmessungen [mm] H | 26 |
Abmessungen [mm] I | 22 |
Etim Gruppe | Absperrhähne/Ventile/Regler |
Etim Klasse | Heizkörperventil |
Marke | COMAP |
Produkttyp | Other Emmiter technology |
- Bauteile aus Messing vernickelt
- Dichtmaterialien: EPDM
- Max. Betriebstemperatur: 120 °C
- Max. Betriebsdruck: 10 bar
- Betriebsmedium: Heizungswasser nach VDI 2035
![https://raleo.de:443/files/img/11edab2ae4837a60a524b42e99482176/size_s/keymark-011.jpg](https://raleo.de:443/files/img/11edab2ae4837a60a524b42e99482176/size_s/keymark-011.jpg)
Beschreibung
Thermostat-Ventilunterteil für Zweirohr-Heizungssysteme, mit stufenloser Voreinstellung, Baumaße nach EN 215-F (französische Norm), Bauschutzkappe weiß.
- Zertifiziert nach DIN EN 215
- Die Thermostat-Ventilunterteile mit stufenloser Voreinstellung ohne Hubbegrenzung ermöglichen einen exakten hydraulischen Abgleich
- Ventileinsatz mittels Demontagegerät austauschbar
- Tüllenverschraubung im Gehäuse weichdichtend und zum Heizkörper selbstdichtend mittels Gewindeeinschneiddichtung
Typ | Nenn- weite | Kvs [m³/h] | Anschluss | Abmessungen [mm] | Verpackung (St.) | Bestell- nummer | |||||
D | E | F | A | G | H | I | |||||
TVU Fr721.11 - DN10* | DN 10 | - | Rp 3⁄8" | G 1⁄2" M | M 30 x 1,5 | 75 | 50,0 | 24 | 22 | 20 | F34009 |
TVU Fr721.11 - DN15* | DN 15 | - | Rp 1⁄2" | G 1⁄2" M | M 30 x 1,5 | 83 | 55,0 | 26 | 22 | 20 | F34011 |
TVU Fr721.11 - DN20* | DN 20 | - | Rp 3⁄4" | G 3⁄4" M | M 30 x 1,5 | 97 | 65,5 | 30 | 22 | 20 | F34013 |
